In this blog post I will post all my contributions to the 2025 #30DayChartChallenge.
Day 1 Comparisons::Fractions
Alternative 1
Show the code
library(sf)library(tidyverse)library(rnaturalearth)library(showtext)library(png)library(ggtext)"%ni%"<-Negate("%in%")logo <-readPNG("../../logo_gray_png.png")logo_red <-readPNG("../../logo_red_png.png")font_add_google("IBM Plex Sans", regular.wt =300)update_geom_defaults("text", list(family ="IBM Plex Sans"))# Get Norway map and transform the target coordinate reference systemnorway_map <-ne_countries(scale ="medium", country ="Norway", returnclass ="sf") %>%st_transform(crs =25832)# Define a bounding box that covers only mainland Norwaymainland_bbox <-st_bbox(c(xmin =0, xmax =35, ymin =57, ymax =71), crs =4326) %>%st_as_sfc() %>%st_transform(crs =25832)# Intersect Norway's map with the bounding box to exclude Svalbard & Jan Mayennorway_mainland <-st_intersection(norway_map, mainland_bbox)# We can now find the area of Mainland Norway using st_area()# This we can use later to calculate the percentage of protected land areaarea_nor_mainland <-st_area(norway_mainland) # 3.25e11 m2# We divide by 1 million to get squared kilometeresarea_nor_mainland <- units::set_units(area_nor_mainland, km^2)# Create a hexagonal grid over Norway's extent# Could have made each hexagon e.g. 1/100th of Norway's area but I found the hexagons to be too large that way so I instead played around with the size manually (each hexagon is 1/120th of Norway's area)grid <-st_make_grid(norway_mainland, cellsize = area_nor_mainland /120, what ="polygons", square =FALSE)# Keep only the grid cells that overlap with mainland Norwaygrid <-st_intersection(grid, st_union(norway_map))# Convert to sf objectgrid_sf <-st_sf(geometry = grid)# Compute centroids of grid cells and sort by latitude (so that we "fill" up Norway like a glass)grid_sf$centroid_y <-st_coordinates(st_centroid(grid_sf))[, 2]grid_sf <- grid_sf %>%arrange(centroid_y)# We now load data from https://miljostatus.miljodirektoratet.no/miljomal/naturmangfold/miljomal-1.3/miljoindikator-1.3.1# Containing data on protected areas by category, given in square kilometerpercentages_df <-read_delim("day1/vern_year.txt") %>%mutate(protected = national_park + nature_reserve + protected_landscape_area + other_protected_area,non_protected =as.numeric(area_nor_mainland) - protected,p_protected = protected / (protected + non_protected) ) %>%filter(year %in%c(1980, 1990, 2000, 2010, 2020, 2023)) %>%select(year, p_protected)# Ensure years and percentages matchyears <- percentages_df$yearpercentages <- percentages_df$p_protected# Create a faceted dataset with different fill levels (corresponding to percentages for each year)# This iterates through each year's proportion of protected land# It determines how many grid cells (num_fill) should be fill to represent the protection level# This part was really tricky to do in an automated way so I had an LLM do it for megrid_facet <-bind_rows(lapply(seq_along(percentages), function(i) { p <- percentages[i] num_fill <-round(p *nrow(grid_sf)) grid_sf %>%mutate(fill =ifelse(seq_len(nrow(grid_sf)) <= num_fill, "filled", "empty"),fill_percentage =paste0(round(p *100, 2), "% fill"),year = years[i] )}))map_plot <- grid_facet %>%ggplot() +geom_sf(aes(fill = fill), color ="#f5e6d3") +geom_sf(data = norway_mainland, fill =NA, color ="#222222", size =0.01) +scale_fill_manual(values =c("filled"="#d18681", "empty"="#edd492")) +facet_wrap(~year, nrow =1) +# Facet by year instead of fill_percentagelabs(title ="Nature Conservation Area Change Over Time in Norway",subtitle ="Over the past 50 years there has been an increase in the protected land area of mainland Norway. In 2023, 17.5% of the mainland area (324,700 square kilometers) was protected, primarily as national parks. The <strong style='color: #d18681;'>red-colored hexagons</strong> indicate the fraction of Norway protected, and not the actual geographical locations.",fill ="Status" ) +theme_minimal(base_size =7, base_family ="IBM Plex Sans") +theme(plot.background =element_rect(fill ="#f5e6d3", color =NA),legend.position ="none",plot.subtitle =element_textbox_simple(color ="#222222", margin =margin(2, 0, 5, 0), size =6),plot.title =element_textbox_simple(color ="#222222", size =9.5, margin =margin(4, 0, 5, 0), face ="bold"),axis.title =element_blank(),axis.text =element_blank(),panel.grid =element_blank()# plot.margin = unit(c(-15, 5, -15, 5), "mm") )# Create bar plots showing fractions of the total protected area by type of protectionbar_prot_df <-read_delim("day1/vern_year.txt") %>%filter(year %in%c(1980, 1990, 2000, 2010, 2020, 2023)) %>%select(year, `National park`= national_park, `Nature reserve`= nature_reserve, `Protected landscape area`= protected_landscape_area) %>%pivot_longer(cols =-year, names_to ="type_of_protection")bar_prot_perc <- bar_prot_df %>%group_by(year) %>%summarise(sum =sum(value)) %>%mutate(perc =paste0(round(100* (sum /as.numeric(area_nor_mainland)), 1), "% protected"))bar_prot <- bar_prot_df %>%left_join(bar_prot_perc) %>%ggplot(aes(x = value, y = type_of_protection, fill = type_of_protection, label = perc)) +geom_col(width =0.6, color ="#222222", size =0.1) +facet_grid(cols =vars(year), switch ="x") +scale_fill_manual(values =c("#7c9a78", "#B57F50", "#6a8782")) +theme_minimal(base_size =6, base_family ="IBM Plex Sans") +theme(plot.background =element_rect(fill ="#f5e6d3", color =NA),legend.position ="bottom",legend.key.height =unit(1.1, "mm"),plot.caption =element_textbox_simple(color ="#666666", hjust =0.5, margin =margin(5, 0, 3, 0)),axis.title =element_blank(),axis.text.y =element_blank(),axis.text.x =element_text(vjust =0),axis.line.x =element_line(color ="#444444", size =0.1),axis.ticks.x =element_line(color ="#444444", size =0.1),axis.ticks.length.x =unit(1, "mm"),panel.grid =element_blank(),strip.text =element_blank(),panel.spacing =unit(0.75, "cm"),plot.margin =unit(c(2, 5, 2, 2), "mm") ) +guides(fill =guide_legend(label.position ="bottom", title =NULL, reverse =TRUE)) +scale_x_continuous(limits =c(0, 4e4), expand =c(0, 0), breaks =c(0, 2e4, 4e4), labels =c(expression(0), expression("20,000"), expression("40,000"~ km^2))) +geom_text(y =4.1, x =0, size =1.75, color ="#444444", hjust =0) +coord_cartesian(clip ="off") +labs(caption ="**Source:** Miljodirektoratet | **Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" )library(patchwork)composite <- map_plot + bar_prot +plot_layout(nrow =2, heights =c(12, 1.5)) +plot_annotation(theme =theme(plot.background =element_rect(color =NA, fill ="#f5e6d3")))# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day1/out/p_nor_protect.jpg", composite, width = 160, height = 90, unit = "mm", dpi = 500)
Alternative 2
Show the code
library(tidyverse)library(ggbeeswarm)library(ggplotify)library(cowplot)library(grid)library(ggtext)library(ggrepel)library(png)library(showtext)"%ni%"<-Negate("%in%")# Themes and aestheticsupdate_geom_defaults("text", list(family ="IBM Plex Sans"))update_geom_defaults("label_repel", list(family ="IBM Plex Sans"))font_add_google("IBM Plex Sans", "ibm", regular.wt =300)font_add_google("Roboto Condensed", "roboto_head")waffle_theme <-function() {theme_minimal(base_family ="ibm", base_size =7) +theme(panel.grid =element_blank(),axis.text =element_blank(),axis.title =element_blank(),axis.ticks =element_blank(),strip.text =element_text(size =6, hjust =0, face ="bold"),panel.margin.y =unit(0.1, "lines"),plot.title =element_textbox_simple(family ="roboto_head", face ="bold", size =16, margin =margin(2, 0, 5, 0)),plot.subtitle =element_textbox_simple(margin =margin(4, 0, 8, 0)),plot.caption =element_textbox_simple(color ="#999999", hjust =0, margin =margin(10, 0, 0, 0)),plot.margin =unit(c(5, 2, 5, 2), "mm"),legend.position ="none" )}leg_theme <-function() {theme_minimal(base_family ="ibm", base_size =6) +theme(panel.grid =element_blank(),axis.text.y =element_blank(),axis.title.y =element_blank(),axis.ticks.y =element_blank(),axis.ticks.x =element_line(size =0.15, color ="#222222"),axis.line.x =element_line(size =0.15, color ="#222222"),axis.ticks.length.x =unit(1.5, "mm"),plot.background =element_rect(fill ="white", color =NA),legend.position ="none" )}# Colors for R2 categoriesfill_r2 <-c("Low"="#e7ebed","Int. low"="#a1b0b8","Int. high"="#4e6a78","High"="#111111")# A picture of a bacteriumbact <-readPNG("day1/bacteria.png")# My logologo <-readPNG("../../logo_gray_png.png")logo_red <-readPNG("../../logo_red_png.png")# Load metabolite annotation datamet_ann <-read_delim("day1/met_ann.txt") %>%select(biochem = Biochemical, super_pathw = SuperPathway) %>%mutate(super_pathw =case_when( super_pathw =="Amino Acid"~"Amino acids", super_pathw =="Carbohydrate"~"Carbohydrates", super_pathw =="Cofactors and Vitamins"~"Cofactors/vitamins", super_pathw =="Lipid"~"Lipids", super_pathw =="Nucleotide"~"Nucleotides", super_pathw =="Peptide"~"Peptides",TRUE~ super_pathw ))# Load variance explained by gut microbiome datavar_expl <-read_delim("day1/dekkers_var_expl.txt", locale =locale(decimal_mark =",")) %>%select(biochem, r2) %>%# Join in metabolite annotation dataleft_join(met_ann, by ="biochem") %>%mutate(super_pathw =ifelse(is.na(super_pathw), "Unknown pathway", super_pathw)) %>%# Categorize variance explained by microbiomemutate(r2_cat =case_when( r2 >0.3~"High", r2 <=0.3& r2 >0.15~"Int. high", r2 <=0.15& r2 >0.05~"Int. low", r2 <=0.05~"Low" )) %>%# Remove pathways with few observationsfilter(super_pathw %ni%c("Partially Characterized Molecules", "Energy"))# Ordering by number of metabolites per super_pathwpathw_ord <- var_expl %>%group_by(super_pathw) %>%count() %>%arrange(desc(n)) %>%pull(super_pathw)# Wide screen friendly# -----------------------------------------------------------------------------># Wrangle the data for a waffle, with 10 columns per rowvar_expl_waffle <- var_expl %>%group_by(super_pathw) %>%mutate(row = (row_number() -1) %%10+1,col = (row_number() -1) %/%10+1 ) %>%mutate(super_pathw =factor(super_pathw, levels = pathw_ord)) %>%mutate(ann_lab =case_when(biochem %in%c("p-cresol sulfate", "phenylacetylglutamine", "phenylacetate", "isoursodeoxycholate") ~"lab", TRUE~"nolab")) %>%mutate(biochem =case_when( biochem =="phenylacetylglutamine"~"PAGln", biochem =="isoursodeoxycholate"~"iso-UDCA",TRUE~ biochem ))# Plot the waffle plotp_fractions <-ggplot(var_expl_waffle, aes(y = col, x = row, fill = r2_cat)) +geom_tile(color ="white") +# Tile gridscale_y_reverse(expand =c(0, 0)) +# Reverse y-axis so it reads top-to-bottomfacet_grid(cols =vars(super_pathw), space ="free", scales ="free") +waffle_theme() +labs(title ="Gut bacterial byproducts",subtitle ="Using an <span style = 'color:#4e6a78;'>**integrated blood metabolomics—stool metagenomics**</span> dataset, we can classify metabolites of various classes by how much their circulating **variation is explained by the gut microbiome**. While the metabolite library may be biased, these datasets nonetheless serve as a resource to identify metabolites of more-or-less gut microbial origin. *Some known microbial metabolites are annotated.*",caption ="**Source:** Dekkers et al., Nat Commun **2022** Sep 23;13(1):5370<br>Data visualization by Peder Braadland." ) +geom_label_repel(aes(label =ifelse(ann_lab =="lab", biochem, NA)), size =1.8, box.padding =0.5, min.segment.length =0, alpha =0.8, segment.size =0.3, segment.curvature =-0.3, label.padding =0.15, color ="#222222", fill ="#F9F9F9") +scale_fill_manual(values = fill_r2) +geom_vline(xintercept =12, linetype ="dashed", linewidth =0.1, color ="#F0F0F0")leg <- var_expl %>%ggplot(aes(x = r2, color = r2_cat, y ="")) +geom_quasirandom(size =1, shape =16, width =0.55) +leg_theme() +scale_color_manual(values = fill_r2) +scale_x_continuous(breaks =c(0, 0.05, 0.15, 0.30, 0.5), limits =c(0, 0.5), expand =expansion(mult =c(0, 0))) +scale_y_discrete(expand =c(0.05, 0.05)) +geom_segment(aes(x =0.002, xend =0.049, y =0.35, yend =0.35), linewidth =3.2, color ="#e7ebed") +geom_segment(aes(x =0.051, xend =0.149, y =0.35, yend =0.35), linewidth =3.2, color ="#a1b0b8") +geom_segment(aes(x =0.151, xend =0.299, y =0.35, yend =0.35), linewidth =3.2, color ="#4e6a78") +geom_segment(aes(x =0.301, xend =0.50, y =0.35, yend =0.35), linewidth =3.2, color ="#111111") +# Empty spacer for more spacegeom_segment(aes(x =0.301, xend =0.50, y =0.25, yend =0.25), linewidth =3, color ="#FFFFFF") +# Text annotationsannotate(geom ="text", label ="Low", x =0.025, hjust =0.5, y =0.35, size =1.8, vjust =0.5, color ="#222222") +annotate(geom ="text", label ="Low int.", x =0.15-0.05, hjust =0.5, y =0.35, size =1.8, vjust =0.5, color ="#222222") +annotate(geom ="text", label ="High int.", x =0.15+ (0.30-0.15) /2, hjust =0.5, y =0.35, size =1.8, vjust =0.5, color ="#F9F9F9") +annotate(geom ="text", label ="High", x =0.30+ (0.50-0.30) /2, hjust =0.5, y =0.35, size =1.8, vjust =0.5, color ="#F9F9F9") +labs(x =expression("Variance explained by the microbiome, R"^2) )# Compositefinal_plot <-ggdraw() +draw_plot(p_fractions, 0, 0, 1, 1) +draw_grob(as.grob(leg), x =0.49, y =0.05, width =0.50, height =0.5) +draw_grob(rasterGrob(bact), x =0.33, y =0.91, width =0.05, height =0.05) +draw_grob(rasterGrob(logo), x =0.95, y =0.02, width =0.05, height =0.05)showtext_auto()showtext_opts(dpi =500)#ggsave("day1/out/p_fractions_wide.jpg", final_plot, width = 180, height = 100, unit = "mm", dpi = 500)# Cell phone screen friendly# -----------------------------------------------------------------------------># Wrangle the data for a waffle, with 5 rows per columnvar_expl_waffle <- var_expl %>%group_by(super_pathw) %>%mutate(row = (row_number() -1) %%5+1,col = (row_number() -1) %/%5+1 ) %>%mutate(super_pathw =factor(super_pathw, levels = pathw_ord)) %>%mutate(ann_lab =case_when(biochem %in%c("p-cresol sulfate", "phenylacetylglutamine", "phenylacetate", "isoursodeoxycholate") ~"lab", TRUE~"nolab")) %>%mutate(biochem =case_when( biochem =="phenylacetylglutamine"~"PAGln", biochem =="isoursodeoxycholate"~"iso-UDCA",TRUE~ biochem ))# Plot the waffle plotp_fractions <-ggplot(var_expl_waffle, aes(x = col, y = row, fill = r2_cat)) +geom_tile(color ="white") +# Tile gridscale_x_continuous(expand =c(0, 0)) +# Reverse y-axis so it reads top-to-bottomfacet_wrap(~super_pathw, nrow =8) +waffle_theme() +theme(strip.text =element_text(size =6, hjust =0, margin =margin(l =0, b =1), face ="bold") ) +labs(title ="Gut bacterial byproducts",subtitle ="Using an <span style = 'color:#4e6a78;'>**integrated blood metabolomics—stool metagenomics**</span> dataset, we can classify metabolites of various classes by how much their circulating **variation is explained by the gut microbiome**. While the metabolite library may be biased, these datasets nonetheless serve as a resource to identify metabolites of more-or-less gut microbial origin. *Some known microbial metabolites are annotated.*",caption ="**Source:** Dekkers et al., Nat Commun **2022** Sep 23;13(1):5370<br>Data visualization by Peder Braadland." ) +geom_label_repel(aes(label =ifelse(ann_lab =="lab", biochem, NA)), size =1.8, box.padding =0.5, min.segment.length =0, alpha =0.8, segment.size =0.3, segment.curvature =-0.3, label.padding =0.15, color ="#222222", fill ="#F9F9F9") +scale_fill_manual(values = fill_r2)leg <- var_expl %>%ggplot(aes(x = r2, color = r2_cat, y ="")) +leg_theme() +theme(plot.background =element_rect(fill ="#F9F9F9", color =NA),plot.margin =unit(c(1, 4, 1, 4), "mm") ) +scale_color_manual(values = fill_r2) +scale_x_continuous(breaks =c(0, 0.05, 0.15, 0.30, 0.5), limits =c(0, 0.5), expand =expansion(mult =c(0, 0))) +scale_y_discrete(expand =c(0.05, 0.05)) +# Empty spacer for more spacegeom_segment(aes(x =0.301, xend =0.50, y =0.075, yend =0.075), linewidth =3, color ="#F9F9F9") +# Annotating the categories: segmentsgeom_segment(aes(x =0.002, xend =0.049, y =0.15, yend =0.15), linewidth =3.2, color ="#e7ebed") +geom_segment(aes(x =0.051, xend =0.149, y =0.15, yend =0.15), linewidth =3.2, color ="#a1b0b8") +geom_segment(aes(x =0.151, xend =0.299, y =0.15, yend =0.15), linewidth =3.2, color ="#4e6a78") +geom_segment(aes(x =0.301, xend =0.50, y =0.15, yend =0.15), linewidth =3.2, color ="#111111") +# Annotating the categories: textannotate(geom ="text", label ="Low", x =0.025, hjust =0.5, y =0.15, size =1.8, vjust =0.5, color ="#222222") +annotate(geom ="text", label ="Low int.", x =0.15-0.05, hjust =0.5, y =0.15, size =1.8, vjust =0.5, color ="#222222") +annotate(geom ="text", label ="High int.", x =0.15+ (0.30-0.15) /2, hjust =0.5, y =0.15, size =1.8, vjust =0.5, color ="#F9F9F9") +annotate(geom ="text", label ="High", x =0.30+ (0.50-0.30) /2, hjust =0.5, y =0.15, size =1.8, vjust =0.5, color ="#F9F9F9") +labs(x =expression("Variance explained by the microbiome, R"^2) )# Compositefinal_plot <-ggdraw() +draw_plot(p_fractions, 0, 0, 1, 1) +draw_grob(as.grob(leg), x =0.3, y =0.25, width =0.6, height =0.12) +draw_grob(rasterGrob(bact), x =0.66, y =0.89, width =0.12, height =0.12) +draw_grob(rasterGrob(logo), x =0.93, y =0.01, width =0.05, height =0.05)showtext_opts(dpi =500)#ggsave("day1/out/p_fractions_cellph.jpg", final_plot, width = 90, height = 150, unit = "mm", dpi = 500)
Wide-screen friendly version
Cell-phone friendly version
Day 2 Comparisons::Slope
Show the code
# https://www.ifw-kiel.de/publications/ukraine-support-tracker-data-20758/# The data indicates total bilateral aid allocations to Ukraine in <U+20AC> billion with traceable months between February 1, 2022 and December 31, 2024. Allocations are defined as aid which has been delivered or specified for delivery.# the ggflags package is available here: https://github.com/jimjam-slam/ggflagslibrary(tidyverse)library(showtext)library(ggflags)font_add_google("IBM Plex Sans")ua_aid_eu_us <-read_delim("day2/ua_aid_eu_us.txt", locale =locale(decimal_mark =",")) %>%pivot_longer(cols =-date, values_to ="allocated_bn_eur", names_to ="region") %>%mutate(region =ifelse(str_detect(region, "us"), "USA", "EU")) %>%mutate(date =dmy(date)) %>%# Calculate cumulative sum by regiongroup_by(region) %>%mutate(cumulative_sum =cumsum(allocated_bn_eur)) %>%# Add country codes for the geom_flagmutate(country_code =ifelse(region =="USA", "us", "eu"))gradient_fill <- grid::linearGradient(c("#FFFFFF", "#FFFFFF", "#1fa99f10", "#1fa99f10"),stops =c(0, 0.05, 0.95, 1),x2 =unit(0, "npc")) #fffbf3ua_aid_eu_us_p <- ua_aid_eu_us %>%ggplot(aes(x = date, y = cumulative_sum, group = region, color = region)) +geom_segment(aes(x =as.Date(-Inf), xend =as.Date(Inf), y =0, yend =0), color ="#333333", size =0.2) +geom_line(size =2, alpha =0.8) +geom_point(data = ua_aid_eu_us %>%filter(date <max(ua_aid_eu_us$date) & date >min(ua_aid_eu_us$date)),aes(x = date, y = cumulative_sum),color ="#F0F0F0", size =0.7 ) +geom_flag(data = ua_aid_eu_us %>%filter(date ==max(data = ua_aid_eu_us$date)),aes(country = country_code), size =4.5 ) +scale_x_date() +scale_y_continuous(breaks =seq(0, 120, 20), labels =c("0", "20", "40", "60", "80", "100", "120bn €"), expand =c(0, 0)) +labs(title ="Who have donated more?",subtitle ="Cumulative sum of aid allocations to Ukraine from <strong style='color: #1277b0;'>Europe</strong> and the <strong style='color: #ec7477;'>United States</strong> between February 2022 and December 2024." ) +theme_minimal(base_family ="IBM Plex Sans", base_size =6.5) +theme(axis.title.y =element_blank(), axis.title.x =element_blank(),axis.text.y =element_text(margin =margin(r =-26), vjust =-0.5, hjust =0, size =6.5),axis.text.x =element_text(size =6.5),panel.grid.minor =element_blank(),panel.grid.major.x =element_blank(),panel.grid.major.y =element_line(color ="#e0e0e0"),axis.ticks.x =element_line(color ="#333333", size =0.2),# axis.line.x = element_line(color = "#333333", size = 0.2),axis.ticks.length.x =unit(2, "mm"),legend.position ="none",plot.margin =unit(c(5, 2, 5, 2), "mm"),plot.background =element_rect(fill = gradient_fill, color =NA),plot.subtitle =element_textbox_simple(color ="#333333", size =6, margin =margin(2, 0, 5, 0)),plot.title =element_text(size =12, color ="#333333", face ="bold"),plot.caption =element_textbox_simple(margin =margin(5, 0, 0, 0), color ="#999999", size =4.5) ) +scale_color_manual(values =c("#1277b0", "#ec7477")) +coord_cartesian(clip ="off") +labs(caption ="**Source:** Ukraine Support Tracker; ifw-kiel.de/publications/ukraine-support-tracker-data-20758/<br>**Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" )showtext_auto()showtext_opts(dpi =500)ggsave("day2/out/ua_aid_eu_us.jpg", ua_aid_eu_us_p, width =90, height =70, unit ="mm", dpi =500)
Day 3 Comparisons::Circular
Show the code
# Total bilateral allocations to Ukraine from February 1st 2022 to today, as % of 2021 GDP# Data downloaded from https://www.ifw-kiel.de/publications/ukraine-support-tracker-data-20758/# Allocations are defined as aid which has been delivered or specified for delivery.font_add_google("Bebas Neue")library(tidyverse)library(ggbrick)library(ggtext)library(glue)library(showtext)"%ni%"<-Negate("%in%")ua_aid_country <-read_delim("day3/ua_aid_country.txt", locale =locale(decimal_mark =",")) %>%arrange(desc(tot_bilat_alloc_perc_gdp2021)) %>%filter(country !="EU (Commission and Council)") %>%mutate(country =case_when( country =="United Kingdom"~"UK", country =="United States"~"US",TRUE~ country )) %>%# Filter only the top 20 contributorsslice_head(n =20) %>%# Define a size parameter for CSS styling of the country_lab % of GDP# This enables the font-size of the % of GDP to correspond to its levelmutate(alloc_cat =cut( tot_bilat_alloc_perc_gdp2021,breaks =seq(0, max(tot_bilat_alloc_perc_gdp2021, na.rm =TRUE) +0.5, by =0.5),labels =seq(8, 8+ (length(seq(0, max(tot_bilat_alloc_perc_gdp2021, na.rm =TRUE), by =0.5)) -1) *2, by =2),right =FALSE ) ) %>%# Append "px" for the CSS-stylingmutate(alloc_cat =glue("{alloc_cat}px")) %>%# Create a text string containing % GDP with a "%"mutate(alloc_perc =paste0(round(tot_bilat_alloc_perc_gdp2021, 1), "%")) %>%# Create the x-axis labels. Here, countries appearing at the bottom half of# the circle should have the % GDP string "above" the country name,# otherwise the % GDP string appears below the country namemutate(country_lab =ifelse(country %in%c("Estonia", "Denmark", "Lithuania", "Latvia", "Finland", "Sweden", "Belgium", "Luxembourg", "Bulgaria"),glue("**{country}**<br><br><i style='font-size:{alloc_cat}'>{alloc_perc}</i>"),glue("<i style='font-size:{alloc_cat}'>{alloc_perc}</i><br><br>**{country}**") )) %>%# Define the y-axis level as a rounded `tot_bilat_alloc_perc_gdp2021`# We anyways overwrite these labels using scale_y_continuous() latermutate(row_n =round(tot_bilat_alloc_perc_gdp2021 *100, 0)) %>%# This variable creates the "underlying" white wafflemutate(row_perc =250) %>%#mutate(fill_cols =c(rep(LETTERS[1:2], 10))) %>%ggplot(aes(x =reorder(country_lab, -1* row_n), y = row_n)) +geom_waffle(aes(y = row_perc), fill ="#F9F9F9", color =NA, bricks_per_layer =10) +geom_waffle(aes(fill = fill_cols), color ="#F9F9F9", bricks_per_layer =10, size =0.01) +coord_brick() +theme_minimal(base_family ="IBM Plex Sans", base_size =7) +theme(plot.background =element_rect(fill ="#f4efed", color =NA),panel.grid =element_blank(),axis.ticks.x =element_blank(),axis.ticks.y =element_line(size =0.15, color ="#444444"),axis.text.x =element_markdown(size =6.5),plot.caption =element_textbox_simple(color ="#999999", hjust =0.5, margin =margin(4, 0, 0, 0)),plot.subtitle =element_textbox_simple(color ="#444444", hjust =0.5, margin =margin(10, 0, 5, 0)),plot.title =element_textbox(size =26.6, margin =margin(10, 0, 0, 0), face ="bold", family ="Bebas Neue", color ="#444444"),legend.position ="none" ) +scale_y_continuous(breaks =seq(0, 250, 50), labels =c("0", "0.5", "1.0", "1.5", "2.0", "2.5%"), limits =c(-50, 250)) +labs(x ="", y ="", ) +coord_radial(theta ="x", start =2* pi, end = pi *1.75) +guides(theta =guide_axis_theta(angle =0),r =guide_axis(angle =0) ) +labs(title ="Bilateral donations to Ukraine",subtitle ="The total donations to Ukraine from February 1st 2022 to today, as a percentage of 2021 GDP, for the top 20 donating countries. Each <strong>box</strong> represents 0.01% of the GDP.",x ="",y ="",caption ="**Total bilateral allocations to Ukraine** from February 1st 2022 to today, as % of 2021 GDP.<br>Data downloaded from ifw-kiel.de/publications/ukraine-support/tracker-data-20758/.<br><br>Data visualization by Peder Braadland <img src='../../logo_red_png.png' width='10'/>" ) +scale_fill_manual(values =c("#0057b7", "#ffd700"))# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day3/out/ua_aid_country.jpg", ua_aid_country, width = 140, height = 140, unit = "mm", dpi = 500)
Day 4 Comparisons::Big or Small
Show the code
library(ggforce)library(ggrepel)library(ggpubr)library(showtext)library(tidyverse)library(ggtext)font_add_google("Audiowide", "spacey_font", regular.wt =400)update_geom_defaults("text_repel", list(family ="IBM Plex Sans"))theme_space <-function() {theme_minimal(base_size =5, base_family ="IBM Plex Sans") +theme(panel.grid.major.y =element_blank(),panel.grid.major =element_line(color ="#222222"),panel.grid.minor =element_blank(),plot.background =element_rect(fill ="#151515", color =NA),axis.title.y =element_blank(),plot.title =element_textbox_simple(family ="spacey_font", color ="#E0E0E0", size =11, margin =margin(4, 0, 0, 0)),plot.subtitle =element_textbox_simple(color ="#999999", margin =margin(3, 0, 8, 0), size =5),plot.caption =element_markdown(color ="#999999"),axis.text =element_text(color ="#999999"),legend.position ="bottom",legend.title =element_blank(),axis.title.x =element_text(color ="#999999", hjust =0),axis.text.y =element_blank(),legend.text =element_text(color ="#999999"),legend.key.spacing.x =unit(5, "mm"),legend.key.width =unit(0, "mm") )}planet_pal <-c(Mercury ="#8d8a88",Venus ="#f4dbc4",Earth ="#386f61",Mars ="#f27b5f",Jupiter ="#bfb19d",Saturn ="#f3ce88",Uranus ="#95bbbe",Neptune ="#657ba5", Pluto <-c("#999999"))# How many Earths could fit inside Jupiter?# We borrow data from the tibble belowsphere_volume <-function(x) { (4/3)*pi*(x/2)^3}#sphere_volume(142984)/sphere_volume(12756) # Around 1400planets_diameter <-tibble(planet =c("Mercury", "Venus", "Earth", "Mars", "Jupiter", "Saturn", "Uranus", "Neptune", "Pluto"),mass =c(0.33, 4.87, 5.97, 0.642, 1898, 568, 86.8, 102, 0.013), # https://nssdc.gsfc.nasa.gov/planetary/factsheet/diameter =c(4879, 12104, 12756, 6792, 142984, 120536, 51118, 49528, 2376),dist_sun =c(57.9, 108.2, 149.6, 228, 778.5, 1432, 2867, 4515, 5906.4) ) %>%mutate(rel_diam = (diameter /12756)*1.3, # 1.3 is just a scaling factorrel_mass = mass /5.97 ) %>%ggplot(aes(x = dist_sun, y =1, size = rel_diam, color = planet)) +geom_point() + ggforce::geom_ellipse(aes(x0 =1432, y0 =1, a =0.3, b =0.05, angle =45), size =0.6, color ="#f3ce88") +scale_size_identity(guide ="legend",name ="Diameter relative to planet Earth",breaks =c(0.5, 1, 5, 11), labels =c("Half the diameter\nof Earth", "One Earth equivalent", "Wide enough to fit five\nearths side by side", "...11 Earths, approximately\nJupiter's diameter") ) +scale_x_log10() +scale_y_continuous(limits =c(0.5, 1.5)) +theme_space() +geom_text_repel(aes(label = planet),size =2,direction ="x",nudge_y =c(0.2, 0.2, 0.2, 0.2, 0.35, 0.35, 0.3, 0.2, 0.2),segment.size =0.1 ) +scale_color_manual(values = planet_pal) +guides(color ="none", size =guide_legend(label.position ="right",# Since the planets have a stroke and I'm lazy, I just override the size of the legend slightly (0.5-->0.7 and 1.0-->1.3)override.aes =list(color =NA, shape =21, fill ="#999999", stroke =0, size =c(0.7, 1.3, 5, 11)*1.3)), ) +labs(x ="Distance from the sun, million km",title ="The Solar System",subtitle ="If you place around 11 Earths side by side, their collective width will be comparable to the diameter of Jupiter. The **mass** of Jupiter, on the other hand, is **318 times** that of Earth, and you could fit a whopping **1400** Earths inside Jupiter if you imagine Jupiter as a hollow shell. <strong style='color: #8d8a88;'>Mercury</strong>, <strong style='color: #f4dbc4;'>Venus</strong>, <strong style='color: #386f61;'>Earth</strong>, <strong style='color: #f27b5f;'>Mars</strong> and <strong style='color: #999999;'>Pluto</strong> are rocky planets, whereas <strong style='color: #bfb19d;'>Jupiter</strong>, <strong style='color: #f3ce88;'>Saturn</strong>, <strong style='color: #95bbbe;'>Uranus</strong> and <strong style='color: #657ba5;'>Neptune</strong> are gas giants.",caption ="**Source**: NSSDCA | **Data visualization:** Peder Braadland <img src='../../logo_gray_png.png' width='6'/>" )# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day4/out/planets_diameter.jpg", planets_diameter, width = 120, height = 70, unit = "mm", dpi = 500)
Day 5 Comparisons::Ranking
Show the code
library(threadr); library(tidyverse); library(ggrepel); library(RColorBrewer); library(geomtextpath); library(ggpubr); library(showtext); library(zoo); library(glue); library(ggplotify); library(ggtext)font_add_google("Bebas Neue")"%ni%"<-Negate("%in%")# contents <- threadr::list_files_ftp("ftp://sidads.colorado.edu/DATASETS/NOAA/G02135")# We identify the path to the daily data sea ice extent csv for north (i.e. Arctic)# url <- "ftp://sidads.colorado.edu/DATASETS/NOAA/G02135/north/daily/data/N_seaice_extent_daily_v3.0.csv"# We can download the file to a directory in the project folder# download_ftp_file(url, "ice/noaa_download/noaa_data.csv", verbose = TRUE)noaa_arctic <-read_csv("ice/noaa_download/noaa_data.csv")# The raw data has a top row that we do not neednoaa_arctic <- noaa_arctic[-1, ] %>%mutate_at(vars(Year, Month, Day, Extent), as.numeric) %>%mutate(date =dmy(paste0(Day, "-", Month, "-", Year))) %>%select(-c(Year, Month, Day)) %>%mutate(yr =year(date),mo =month(date) ) %>%# Create a 'day' variablegroup_by(yr) %>%mutate(day =as.numeric(date -floor_date(date, "year")) +1)# Compute 14-day rolling avg for quite smooth lineszoo_data <-zoo(noaa_arctic$Extent, order.by = noaa_arctic$date)moving_avg <-rollapply(zoo_data, width =14, FUN = mean, align ="right", fill =NA)noaa_arctic$roll <-as.vector(moving_avg[noaa_arctic$date])# We can investigate the earliest and latest dates (for each year) where the minimum extent was reached for that year. We use the rolling values for this, although it would perhaps be more appropriate to use the actual extents. But since we show rolling means for the lines, we keep it simple.min_max <- noaa_arctic %>%filter(yr %ni%c(1978, 2025)) %>%# We do not consider incomplete years since they may not have had their actual minimums recordedmutate(yr =as.factor(yr)) %>%group_by(yr) %>%filter(roll ==min(roll)) %>%ungroup() %>%summarise(min_day =min(day),max_day =max(day) )# Find the lowest and highest minimum extents recordedlow_high_min_extent <- noaa_arctic %>%filter(yr %ni%c(1978, 2025)) %>%group_by(yr) %>%slice(which.min(roll)) %>%arrange(Extent) %>%ungroup()low_min_extent <- low_high_min_extent %>%select(yr, Extent) %>%filter(Extent ==min(Extent))high_min_extent <- low_high_min_extent %>%select(yr, Extent) %>%filter(Extent ==max(Extent))# Check 2024#low_high_min_extent %>% filter(yr == 2024) # 4.396, which is a 42.5% reduction compared to 1980# Define a color palettenum_years <-length(unique(noaa_arctic$yr))color_palette <-colorRampPalette(c("#313695", "#FFFFBF", "#A50026"))# A plot which indicates when the (rolling) minimums appeararctic_ice_min <- noaa_arctic %>%mutate(yr =as.factor(yr)) %>%filter(day >= min_max$min_day -10& day <= min_max$max_day +10) %>%ggplot(aes(x = day, y = roll, color = yr)) +geom_line(size =0.2, alpha =0.75) +geom_point(data = noaa_arctic %>%filter(yr %ni%c(1978, 2025)) %>%mutate(yr =as.factor(yr)) %>%group_by(yr) %>%filter(roll ==min(roll)),aes(x = day, y = roll) ) +geom_text_repel(data = noaa_arctic %>%mutate(yr_lab =case_when( yr == low_min_extent$yr[1] ~glue("{yr} ({round(low_min_extent$Extent[1], 2)} million sq.km.)"), yr == high_min_extent$yr[1] ~glue("{yr} ({round(high_min_extent$Extent[1], 2)} million sq.km.)"),TRUE~as.character(yr) # Convert factor to character for consistency ) ) %>%filter(yr %ni%c(1978, 2025)) %>%mutate(yr =as.factor(yr)) %>%group_by(yr) %>%filter(roll ==min(roll)),aes(x = day, y = roll, label = yr_lab),size =3, family ="IBM Plex Sans", box.padding =0.3, segment.size =0.15 ) +scale_color_manual(values =color_palette(48)) +theme_void() +theme(panel.background =element_rect(color =NA, fill ="#222222"),plot.background =element_rect(color =NA, fill ="#222222"),plot.margin =unit(c(0, 2, 2, 2), "mm"),axis.text.x =element_text(color ="#666666", size =6.5),plot.title =element_text(family ="Bebas Neue", size =20, lineheight =0.3, color ="#e0e0e0", face ="bold"),plot.subtitle =element_textbox_simple(family ="IBM Plex Sans", size =8, margin =margin(5, 0, 5, 0), color ="#CCCCCC", face ="italic"),legend.position ="none",plot.caption =element_textbox_simple(size =6.5, color ="#666666", margin =margin(5, 0, 2, 0)) ) +scale_size(range =c(0.8, 3)) +scale_y_discrete(expand =c(0.05, 0.05)) +scale_x_continuous(expand =c(0, 0), breaks =c(244, 274), labels =c("Sep 01", "Oct 01")) +labs(title ="Arctic sea ice minimums",subtitle ="The Arctic sea ice minimum normally occurs in mid-to-late September. The 2024 sea ice extent was **42.5%** lower than in 1980. The lowest sea ice minimum ever recorded was in 2012.",caption ="**Source**: NOAA G02135 (N_seaice_extent_daily_v3.0.csv)<br>**Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" )# Create a legendleg <-tibble(x =c(1:num_years),yr =c(1978:2025), ) %>%ggplot(aes(x = x, y =0.6, fill =as.factor(x), color =as.factor(x))) +geom_col(color =NA, alpha =0.75) +scale_fill_manual(values =color_palette(48)) +scale_color_manual(values =color_palette(48)) +annotate("text", size =3, family ="IBM Plex Sans", label ="Earlier years", x =0.5, hjust =0, y =1.1, color ="#313695", fontface ="bold", alpha =0.95) +annotate("text", size =3, family ="IBM Plex Sans", label ="Recent years", x = num_years +0.5, hjust =1, y =1.1, color ="#A50026", fontface ="bold", alpha =0.95) +theme_void() +theme(legend.position ="none") +scale_y_continuous(limits =c(0, 1.3))comp <- arctic_ice_min +annotation_custom(grob =as.grob(leg),xmin =239.7, xmax =265, ymin =8.3, ymax =8.55 )# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day5/out/arctic_ice_min.jpg", comp, width = 90, height = 140, unit = "mm", dpi = 500)

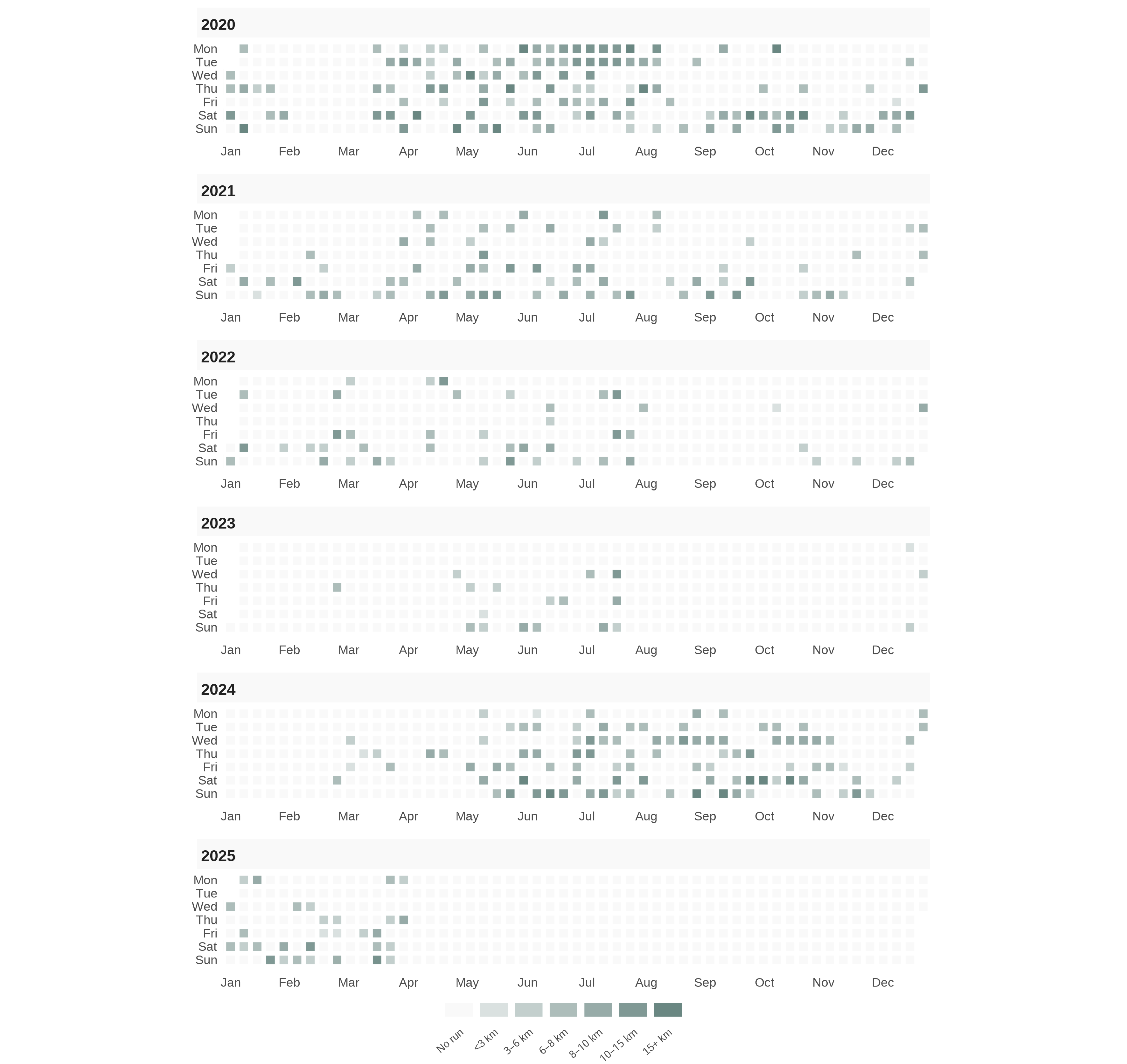

Day 6 Comparisons::Florence Nightinggale
Show the code
library(showtext)library(tidyverse)library(glue)library(ggtext)library(geomtextpath)font_add_google("Inconsolata")font_add_google("Nanum Pen Script")# I downloaded the data manually from Strava since this seems to be the fastest option.strava <-read_csv("day6/strava_activities.csv") %>%filter(`Activity Type`=="Run") %>%select(name =`Activity Name`, date =`Activity Date`, duration_s =`Elapsed Time...6`, distance_km =`Distance...7`, avg_hr =`Average Heart Rate`, avg_gap =`Average Grade Adjusted Pace`, max_hr =`Max Heart Rate...8`, elev_gain =`Elevation Gain`) %>%mutate(date =mdy_hms(date)) %>%arrange(date) %>%mutate(cum_distance =cumsum(distance_km)) %>%mutate(yr =year(date)) %>%# Remove really quick runsfilter(duration_s >500)strava_df <- strava %>%group_by(yr) %>%mutate(day_of_year =yday(date),cum_distance_yr =cumsum(distance_km) ) %>%filter(yr >=2014) %>%# Describe the yearsmutate(desc =case_when( yr ==2014~"It's something", yr ==2015~"Steady but short", yr ==2016~"2015 repeat", yr ==2017~"Rough start but overall great", yr ==2018~"Not bad not great", yr ==2019~"Winter depression", yr ==2020~"Covid shutdown = top year", yr ==2021~"Nothing special", yr ==2022~"The beginning of the end?", yr ==2023~"It's definitely over", yr ==2024~"Renewed energy", yr ==2025~"Go!" )) %>%ungroup()# Ensure that every year has a row where day_of_year == 365 (except for 2025)# Identify which years are missing day_of_year == 365missing_365 <- strava_df %>%group_by(yr) %>%summarise(has_365 =any(day_of_year ==365)) %>%filter(!has_365)last_per_year <- strava_df %>%semi_join(missing_365, by ="yr") %>%group_by(yr) %>%slice_tail(n =1) %>%ungroup() %>%mutate(date =ymd(paste0(yr, "-12-31")),day_of_year =365 )# Combine with originalstrava_complete <-bind_rows(strava_df, last_per_year) %>%arrange(date)# To annotate the facets by total distance per year (the max cumulative distance for a year)# we need to create a new df and join it with the original onetotal_distance <- strava_complete %>%group_by(yr) %>%summarize(total_km =sum(distance_km, na.rm =TRUE)) %>%mutate(facet_lab =glue("<span style='color:#530600'><strong>{yr}</strong></span><br>Total: {round(total_km)} km"))# Step 3: Join backstrava_final <- strava_complete %>%left_join(total_distance, by ="yr") %>%# Remove last date of 2025filter(!(yr ==2025& day_of_year ==365))gradient_fill <- grid::linearGradient(c("#fffbf3", "#fdf6ed", "#fcf9ef", "#fef7ec"),stops =c(0, 0.30, 0.6, 1),x2 =unit(0, "npc"))p_strava <- strava_final %>%ggplot(aes(x = day_of_year, y = cum_distance_yr)) +geom_area(fill ="#b2d2dc", color =NA) +geom_line(color ="#08060b90", linewidth =0.2) +geom_textsmooth(aes(label = desc), color ="#08060b90", size =2, linewidth =0, vjust =-0.5) +geom_rug(sides ="b", linewidth =0.20, alpha =1, length =unit(1.5, "mm"), color ="#b2d2dc") +scale_y_continuous(limits =c(0, 1200),breaks =seq(0, 1200, 200),labels =c("0", "200", "400", "600", "800", "1000", "1200 km"),expand =expansion(mult =c(0.08, 0)) ) +scale_x_continuous(expand =c(0, 0), breaks =seq(0, 365, length.out =12)) +facet_wrap(~facet_lab, nrow =2) +theme_minimal(base_family ="Inconsolata", base_size =9) +theme(panel.grid.major.x =element_line(color ="#b7b7b7", size =0.1),panel.grid.minor =element_blank(),panel.grid.major.y =element_line(color ="#b7b7b7", size =0.1),axis.ticks.y =element_line(color ="#08060b", size =0.15),plot.background =element_rect(fill = gradient_fill, color =NA),strip.text =element_markdown(hjust =0, lineheight =1.1, margin =margin(l =0)),panel.spacing.y =unit(4, "mm"),axis.title =element_blank(),axis.text.x =element_blank(),plot.title =element_text(size =16, color ="#444444", margin =margin(l =-28, t =5)),plot.subtitle =element_textbox_simple(size =8, color ="#444444", lineheight =0.9, margin =margin(l =-28, t =10, b =15)) ) +geom_segment(aes(x =0, xend =0, y =0, yend =1200), color ="#08060b", size =0.15) +geom_segment(aes(x =Inf, xend =Inf, y =0, yend =1200), color ="#08060b", size =0.15) +geom_segment(aes(x =0, xend =Inf, y =0, yend =0), color ="#08060b", size =0.15) +geom_segment(aes(x =0, xend =Inf, y =1200, yend =1200), color ="#08060b", size =0.15) +labs(title ="WHAT ARE YOU RUNNING FROM?",subtitle ="I don't know If Florence Nightingale was a runner. If she was, and she had recorded her runs, she might have visualised her data like this. These are my running stats, shown as <strong>cumulative length of runs per year</strong> for the past ~12 years. It's quite clear that the winter cold and darkness put a break on my running motivation." )# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day6/out/florence_strava.jpg", p_strava, width = 180, height = 100, unit = "mm", dpi = 500)
Day 8 Distributions::Histogram
Show the code
library(tidyverse); library(ggdist)hist_df <- strava %>%# Calculate pace so that we can exclude walksmutate(pace_kph = distance_km / (duration_s /3600)) %>%filter(pace_kph >7) %>%# Also remove very short runsfilter(distance_km >1) %>%mutate(yr_grp =ifelse(yr <2020, "pre-2020", "post-2020")) %>%mutate(yr_grp =as.factor(yr_grp),yr_grp =fct_rev(yr_grp) )n_runs <- hist_df %>%group_by(yr_grp) %>%count()hist <-ggplot()+stat_histinterval(data = hist_df %>%filter(yr_grp =="pre-2020"), aes(x = distance_km, y =""), stroke =0.5, position =position_nudge(y =0.05), breaks =70, fill ="#b2d2dc", .width =0.66, shape =24, color ="#444444", linewidth =0.15, height =0.9)+stat_histinterval(data = hist_df %>%filter(yr_grp =="post-2020"), aes(x = distance_km, y =""), stroke =0.5, side ="bottom", position =position_nudge(y =-0.05), breaks =70, fill ="#b2d2dc", .width =0.66, shape =25, color ="#444444", linewidth =0.15, height =0.9) +scale_x_continuous(breaks =seq(0, 25, 5), labels =c("0km", "5km", "10km", "15km", "20km", "25km"), expand =c(0, 0), limits =c(0, 27)) +theme_minimal(base_family ="IBM Plex Sans", base_size =9) +theme(panel.grid.major.y =element_blank(),plot.caption =element_textbox_simple(color ="#999999", hjust =0.5, margin =margin(10, 0, 3, 0), size =5.5),panel.grid.major.x =element_line(color ="#c9c9c9", size =0.15),panel.grid.minor =element_blank(),plot.background =element_rect(fill ="#faf8f5", color =NA),strip.text =element_markdown(hjust =0, lineheight =1.1, margin =margin(l =0)),panel.spacing.x =unit(10, "mm"),axis.text.y =element_text(vjust =-0.2),axis.title =element_blank(),axis.text.x =element_text(hjust =-0.1, margin =margin(t =-8), color ="#999999"),plot.title =element_text(size =13, color ="#444444", margin =margin(l =0, t =5), face ="bold"),plot.subtitle =element_textbox_simple(size =7, color ="#444444", lineheight =1.1, margin =margin(t =5, b =8, l =0)) ) +labs(title ="Distribution of run lengths by year",subtitle ="The triangle indicates the median run length. The horizontal lines indicate the interquartile range, i.e. the middle 50% of runs fall within this distance range. Over time my runs have become shorter and somewhat less variable.",caption ="**Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" ) +annotate(geom ="text", label =paste0("Before 2020\n", n_runs[[1,2]], " runs"), lineheight =0.8, x =16, y =1.5, family ="IBM Plex Sans", color ="#444444", size =2.5, face ="bold", hjust =0, vjust =1)+annotate(geom ="text", label =paste0("After 2020\n", n_runs[[2,2]], " runs"), lineheight =0.8, x =16, y =0.7, family ="IBM Plex Sans", color ="#444444", size =2.5, face ="bold", hjust =0, vjust =1)# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day8/out/hist.jpg", hist, width = 120, height = 80, unit = "mm", dpi = 500)
Day 11 Distributions::Stripes
Show the code
library(RColorBrewer)hadcrut5_northern <-read_csv("../../climate/temperature/HadCRUT.5.0.2.0.analysis.summary_series.northern_hemisphere.monthly.csv")df <-hadcrut5_northern %>%separate(col = Time, into =c("yr", "mo"), sep ="-") %>%mutate_at(vars(c(yr, mo)), as.integer) %>%mutate(mo =as.factor(mo)) %>%mutate(timepoint =c(1:nrow(.))) %>%rename(anom =`Anomaly (deg C)`) %>%mutate(facet_no =case_when( yr <1900~"1850-1899", yr >=1900& yr <1950~"1900-1949", yr >=1950& yr <2000~"1950-1999", yr >=2000~"2000-today" )) # For the period 2000 to today, we fill in "empty" rows to get the same number of rows as the other facets# The other facets have 600 rows (12months*50years)df_2000_padded <-bind_rows( df %>%filter(facet_no =="2000-today"),tibble(yr =NA_integer_,mo =NA,timepoint =NA_integer_,anom =NA_real_,facet_no ="2000-today" )[rep(1, 300), ]) %>%mutate(timepoint =1:nrow(.))# Assign a themetheme_stripes <-function() {theme_void()+theme(axis.text.x =element_text(family ="IBM Plex Sans", size =5, color ="#444444"),legend.position ="none" )}# From left to rightrow1 <- df %>%filter(facet_no =="1850-1899") %>%ggplot(aes(x = timepoint, y ="", color = anom))+geom_segment(aes(y =0, yend =1, xend = timepoint))+scale_color_gradientn(colours =rev(brewer.pal(11, "RdYlBu")), breaks =seq(-1.5, 1.5, 0.5), limits =c(min(df$anom), max(df$anom)))+theme_minimal(base_size =3)+scale_x_continuous(breaks =seq(10, 590, length.out =6), labels =c("1850", "1860", "1870", "1880", "1890", "1899"))+theme_stripes()+geom_segment(aes(x =0, xend =580, y =0.2, yend =0.2), arrow =arrow(length =unit(0.3, "cm"), type ="closed"), color ="white", size =1, alpha =0.1)# From right to leftrow2 <- df %>%filter(facet_no =="1900-1949") %>%ggplot(aes(x = timepoint, y ="", color = anom))+geom_segment(aes(y =0, yend =1, xend = timepoint))+scale_color_gradientn(colours =rev(brewer.pal(11, "RdYlBu")), breaks =seq(-1.5, 1.5, 0.5), limits =c(min(df$anom), max(df$anom)))+theme_minimal(base_size =3)+scale_x_reverse(breaks =seq(610, 1190, length.out =6), labels =c("1900", "1910", "1920", "1930", "1940", "1949"))+theme_stripes()+geom_segment(aes(x =600, xend =1180, y =0.2, yend =0.2), arrow =arrow(length =unit(0.3, "cm"), type ="closed"), color ="white", size =1, alpha =0.1)# From left to right row3 <- df %>%filter(facet_no =="1950-1999") %>%ggplot(aes(x = timepoint, y ="", color = anom))+geom_segment(aes(y =0, yend =1, xend = timepoint))+scale_color_gradientn(colours =rev(brewer.pal(11, "RdYlBu")), breaks =seq(-1.5, 1.5, 0.5), limits =c(min(df$anom), max(df$anom)))+theme_minimal(base_size =3)+scale_x_continuous(breaks =seq(1210, 1790, length.out =6), labels =c("1950", "1960", "1970", "1980", "1990", "1999"))+theme_stripes()+geom_segment(aes(x =1200, xend =1780, y =0.2, yend =0.2), arrow =arrow(length =unit(0.3, "cm"), type ="closed"), color ="white", size =1, alpha =0.1)# From right to leftrow4 <- df_2000_padded %>%ggplot(aes(x = timepoint, y ="", color = anom))+geom_segment(aes(y =0, yend =1, xend = timepoint))+scale_color_gradientn(colours =rev(brewer.pal(11, "RdYlBu")), breaks =seq(-1.5, 1.5, 0.5), limits =c(min(df$anom), max(df$anom)), na.value ="white")+theme_minimal(base_size =3)+scale_x_reverse(breaks =c(10, 120, 240, 291), labels =c("2000", "2010", "2020", "2025"))+theme_stripes()+geom_segment(aes(x =0, xend =280, y =0.2, yend =0.2), arrow =arrow(length =unit(0.3, "cm"), type ="closed"), color ="white", size =1, alpha =0.1)# Create the legendleg_ <-df %>%rename(`Near surface temperature anomalies relative to 1961-1990 in\nthe Northern Hemisphere. Source: HadCrut.5.0.2.0\nData Visualization by Peder Braadland`= anom) %>%ggplot(aes(x ="", y ="", color =`Near surface temperature anomalies relative to 1961-1990 in\nthe Northern Hemisphere. Source: HadCrut.5.0.2.0\nData Visualization by Peder Braadland`))+geom_point()+scale_color_gradientn(colours =rev(brewer.pal(11, "RdYlBu")), breaks =seq(-1.5, 1.5, 0.5), limits =c(min(df$anom), max(df$anom)), na.value ="white")+theme_minimal(base_family ="IBM Plex Sans", base_size =5)+theme(legend.position ="top",legend.title =element_text(color ="#444444"),legend.text =element_text(color ="#444444"),legend.key.height =unit(2, "mm"),legend.title.position ="bottom" )leg <-get_legend(leg_)row4 <-row4 +annotation_custom(grob =as.grob(leg), xmin =-940, xmax =0, ymin =-0.1, ymax =0.6)#ggsave("day11/out/climate_stripes.jpg", ggarrange(row1, row2, row3, row4, nrow = 4), width = 120, height = 70, unit = "mm", dpi = 500)
Day 15 Relationships::Complicated
Show the code
font_add_google("Bebas Neue")font_add_google("Roboto")# The birthday problem# Similar to in my blog post on simulation and uncertainty (https://peder.quarto.pub/blog/posts/uncertainty/)# We run 50 iterations, but repeat those iterations 10 times, so that we get a distribution of probabilities for each number of people in the room. This then adds to the illustration the influence of sample size (n_it) on the probabilities. Of course, we could skip the outermost loop and increased n_it to, say, 1000 (as in my blog post), but for the sake of this exercise we pretend we repeat our simulation experiment 10 times but each with only 50 iterations.n_rep <-10# Repetitions of the outer loop (repetition of the simulation)n_it <-50# Number of simulations# repeat_res <- data.frame()# # for (rep in 1:n_rep) {# for (n in seq(2, 70, 1)) {# # overlap_bdays <- logical(n_it)# # for (i in 1:n_it) {# sim_res <- data.frame(# person = 1:n,# bdates = sample(1:365, size = n, replace = TRUE)# ) %>%# group_by(bdates) %>%# summarise(count = n()) %>%# summarise(any_duplicates = any(count > 1))# # overlap_bdays[i] <- sim_res$any_duplicates# }# # perc_success <- (sum(overlap_bdays) / n_it) * 100# # # Append the result of this repetition to the dataframe# repeat_res <- rbind(repeat_res,# data.frame(rep = rep,# n_subjects = n,# perc_success = perc_success))# }# }# save(repeat_res, file = "day11/birthdays.RData")load(file ="day11/birthdays.RData")# We can add segments as gridlines. I don't want the grid lines to fully reach the swarm of geom_points.# To acheive this, we can calculate the mean perc_success from our simulation experiment, and use this to# interpolate x-values for the Y-values where we want a grid line. Since the grid lines should not reach# all the way to the geom_points, we add a thick geom_smooth above themmean_probs <- repeat_res %>%group_by(n_subjects) %>%summarise(mean_perc_success =mean(perc_success)) %>%ungroup()# Y-values where we want a gridlinetarget_probs <-seq(10, 90, 10)# Interpolate!interp <-approx(x = mean_probs$mean_perc_success,y = mean_probs$n_subjects,xout = target_probs)# Create a data frame containing the grid line datagridline_df <-data.frame(probability = interp$x,estimated_n =round(interp$y, 1)) %>%mutate(xend = estimated_n)library(ggrounded)p_birthday <-ggplot(repeat_res, aes(x = n_subjects, y = perc_success)) +geom_segment(data = gridline_df, aes(x =0, xend = xend, y = probability, yend = probability), color ="#e0e0e0", size =0.2) +geom_segment(data = mean_probs %>%filter(n_subjects %in%seq(10, 70, 10)),aes(x = n_subjects, xend = n_subjects, y =0, yend = mean_perc_success), color ="#e0e0e0", size =0.2) +geom_smooth(data = repeat_res %>%group_by(n_subjects) %>%summarise(mean_perc_success =mean(perc_success)),aes(x = n_subjects, y = mean_perc_success), se =FALSE, linewidth =20, color ="white", alpha =1) +geom_smooth(data = repeat_res %>%group_by(n_subjects) %>%summarise(mean_perc_success =mean(perc_success)),aes(x = n_subjects, y = mean_perc_success), se =FALSE, linewidth =1.5, color ="#e0e0e0", alpha =0.2) +geom_point(alpha =0.4, size =1.35, fill ="#ff85a5", shape =21, stroke =0)+scale_x_continuous(breaks =c(2, seq(10, 70, 10)))+scale_y_continuous(breaks =seq(0, 100, 10), limits =c(0, 100), labels =c("0", "10", "20", "30", "40", "50", "60", "70", "80", "90", "100%"))+theme_minimal(base_family ="Roboto", base_size =7)+theme(panel.grid.major =element_blank(),panel.grid.minor =element_blank(),plot.title.position ="plot",plot.title =element_text(size =12, family ="Bebas Neue", color ="#222222"),plot.subtitle =element_textbox_simple(size =6, color ="#222222"),plot.caption =element_textbox_simple(size =5, color ="#666666", margin =margin(t =5)),axis.text.x =element_text(margin =margin(t =-5)),axis.text.y =element_text(margin =margin(r =-10)),axis.title.x =element_text(hjust =0.95, margin =margin(t =5), color ="#444444", size =6.5),axis.title.y =element_text(hjust =0.94, color ="#444444", size =6.5) )+geom_hline(yintercept =seq(10, 90, 10), color ="white", size =0.2, alpha =0.5)+labs(x ="Number of people in the room",y ="P(two or more shared birthdays)",subtitle ="Imagine you place *nn* random people in a room. What is the chance that *at least* two of them will **share the same birthday**? This is the birthday problem. The counter-intuitive **paradox is that only 23** people are needed in a room for this probability to exceed 50%. The simulated data used to produce this figure support this surprising fact.",caption ="Each dot represents the probability of two or more people having the same birthday in rooms with various number of people. The probabilities were calculated as the fraction of simulated cases where two or more people shared a birthday. The simulation was repeated 10 times for each room size, giving the distribution of probabilities. The qbirthday() function was used to calculate the *true* number of people needed in a room for the probability to exceed 50%.<br>**Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>",title ="The birthday paradox" )# We can use base R's qbirthday() to determine how many people are needed in the room for the probability to exceed 50%n_needed <-qbirthday(prob =0.5, # Probability classes =365, # Number of days per yearcoincident =2# 2 or more birthdays )p_birthday <-p_birthday +geom_segment(aes(x =0, xend = n_needed, y =50, yend =50), linetype ="dashed", linewidth =0.2, color ="#666666")+geom_segment(aes(x = n_needed, xend = n_needed, y =4, yend =50), linetype ="dashed", linewidth =0.2, color ="#666666")+geom_label(x =23, y =3.5, hjust =0.5, vjust =1, label ="23", family ="IBM Plex Sans", size =2, label.size =NA, color ="#444444", fill ="#facdd9")#showtext_auto()#showtext_opts(dpi = 500)#ggsave("day15/complicated.jpg", p_birthday, width = 90, height = 95, unit = "mm", dpi = 500)
Day 17 Relationships: Birds
Show the code
# Packages and reusables# ----------------------------------------------------------------------------->library(scales); library(ggpubr); library(ggtext); library(glue); library(showtext)lwd <-unit(2.5, "pt")theme_bird <-function() {theme_minimal(base_size =9, base_family ="IBM Plex Sans") +theme(axis.ticks.y =element_blank(),panel.grid.minor =element_blank(),panel.grid.major.y =element_blank(),axis.title.y =element_blank(),axis.title.x =element_text(hjust =0.5, color ="#666666", size =7, margin =margin(t =3)),axis.text.y =element_text(margin =margin(r =-12)),plot.background =element_rect(fill ="#faf8f5", color =NA),plot.title =element_textbox_simple(color ="#444444", size =12, margin =margin(t =10, b =5)),plot.title.position ="plot",plot.subtitle.position ="plot",plot.subtitle =element_textbox_simple(color ="#444444", size =8, margin =margin(t =0, b =10)),plot.caption =element_textbox_simple(color ="#999999", size =6, margin =margin(t =10, b =-2)) )}# Load the data, copied from www.fws.gov/library/collections/threats-birds,# and wrangle it.# ----------------------------------------------------------------------------->bird_raw <-read_delim("day17/na_bird_death_estimates.txt") %>%# Remove some categories with no estimatesfilter(!is.na(estimate)) %>%select(hazard, estimate) %>%# Simplify some category namesmutate(hazard =case_when( hazard =="Collision - Vehicles"~"Vehicles", hazard =="Collisions - Electrical lines"~"Electrical lines", hazard =="Collisions - Communication towers"~"Communication towers", hazard =="Collisions - Land-based Wind Turbines"~"Wind turbines",TRUE~ hazard )) %>%# Remove Oil Pits - what are those anyways?filter(hazard !="Oil Pits")# I did this wrangling exercise to expand categories that exceed 500 million bird# deaths, as I thought I could pass the data directly to the aes() call.# However, I ended up actually just manually defining x and xend positions for the# segments based on data from the following 'bird' data frame. Hence, defining# this data frame is not strictly necessary, but perhaps helpful as a guide for# making the segments. bird <- bird_raw %>%# Expand categories where estimate exceeds 500 million, to enable several rows # for these categoriesrowwise() %>%mutate(n_rows =ceiling(estimate /5e8),chunks =list(rep(5e8, n_rows -1) %>%append(estimate - (n_rows -1) *5e8) ) ) %>%unnest_longer(chunks) %>%rename(chunk_estimate = chunks) %>%select(hazard, chunk_estimate) %>%left_join(bird_raw %>%rename(total = estimate) %>%mutate(total =comma(total)))# Plotting # -----------------------------------------------------------------------------># First we plot the snakey cat-plot. The issue here is that the length of the curved# segments do not actually represent any data points. Since one may "feel" that their# lengths matter, I've made the linear segments a *bit* shorter than 500 million.p_cats <-bird %>%filter(hazard =="Cats") %>%mutate(pos =as.factor(c(nrow(.):1)),x =c(0, 2e7, 2e7, 2e7, 2e7),xend =c(4.8e8, 4.8e8, 4.8e8, 4.8e8, 4e8) ) %>%ggplot() +scale_x_continuous(expand =c(0.1, 0.1), breaks =seq(0, 5e8, 1e8), limits =c(0, 5e8))+scale_y_discrete(expand =c(0.1, 0.1), labels =c("", "", "", "", "Cats"))+theme_bird()+geom_segment(aes(x = x, xend = xend, y = pos), size = lwd, lineend ="butt", color ="#ff85a5")+geom_curve(aes(x =4.8e8, xend =4.8e8, y =5, yend =4), size = lwd, curvature =-1.4, color ="#ff85a5")+geom_curve(aes(x =2e7, xend =2e7, y =4, yend =3), size = lwd, curvature =1.4, color ="#ff85a5")+geom_curve(aes(x =4.8e8, xend =4.8e8, y =3, yend =2), size = lwd, curvature =-1.4, color ="#ff85a5")+geom_curve(aes(x =2e7, xend =2e7, y =2, yend =1), size = lwd, curvature =1.4, color ="#ff85a5") +geom_text(aes(x =4.05e8, y =1), label = bird %>%filter(hazard =="Cats") %>%pull(total), hjust =0, family ="IBM Plex Sans", size =2.5, color ="#ff85a5")+labs(title ="**Top Threats to Birds**",subtitle ="The numbers represent **estimates of annual bird mortality** in the U.S. While there certainly are both positive and negative sides to wind turbines, the focus on them being a major threat to birds may be overstated (although some bird species may be more affected than others). Keeping <strong style='color: #ff85a5;'>cats</strong> on a leash will have a far greatest impact on reducing bird mortality." )# Then building glass (windows). This one is made similar to the cats plot. Since# The second row goes from right to left, we need to take that into account when # defining the xend, going from 500 million to 500 million minus 9.9e07 (which is # the chunk estimate from the second, expanded row in the 'birds' data frame)p_building_glass <- bird %>%filter(hazard =="Collision - Building Glass") %>%mutate(pos =as.factor(c(2, 1)),x =c(0, 4.8e8),xend =c(4.8e8, 5e8-9.9e07) ) %>%ggplot() +scale_x_continuous(expand =c(0.1, 0.1), breaks =seq(0, 5e8, 1e8), limits =c(0, 5e8))+scale_y_discrete(expand =c(0.15, 0.15), labels =c("", "Windows"))+theme_bird()+geom_segment(aes(x = x, xend = xend, y = pos), size = lwd, lineend ="butt", color ="#9c9792")+geom_curve(aes(x =4.8e8, xend =4.8e8, y =1, yend =2), size = lwd, curvature =1.4, color ="#9c9792") +geom_text(aes(x =5e8-105000000, y =1), label = bird %>%filter(hazard =="Collision - Building Glass") %>%pull(total), hjust =1, family ="IBM Plex Sans", size =2.5, color ="#736d67")# Then the other categories (each with a total less than half a billion). Here it's# much easier since we have no "snakes"/overflowing bars. p_rest <-bird %>%filter(hazard %ni%c("Collision - Building Glass", "Cats")) %>%ggplot(aes(x =0, xend = chunk_estimate, y =reorder(hazard, chunk_estimate), yend =reorder(hazard, chunk_estimate)))+geom_segment(size = lwd, lineend ="butt", color =c("#9c9792", "#9c9792", "#9c9792", "#ff85a5", "#9c9792", "#9c9792"))+scale_x_continuous(expand =c(0.1, 0.1), breaks =seq(0, 5e8, 1e8), limits =c(0, 5e8), labels =c("0", "100", "200", "300", "400", "500 million"))+scale_y_discrete(expand =c(0.1, 0.1))+theme_bird()+labs(x ="Number of birds killed",caption ="**Source**: fws.gov/library/collections/threats-birds | **Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" ) +geom_text(aes(x = chunk_estimate, label = total), hjust =0, position =position_nudge(x =2e6), family ="IBM Plex Sans", size =2.5, color =c("#736d67", "#736d67", "#736d67", "#ff85a5", "#736d67", "#736d67"))# Saving the plot# -----------------------------------------------------------------------------># showtext_auto()# showtext_opts(dpi = 500)# Save as pdf, to add vector graphic from iconify.org to the plot, and to "connect"# the grid-lines which are not completely connected between the three arranged plots # in the composite.# ggsave("day17/out/birds.pdf",# ggarrange(# p_cats + theme(axis.text.x = element_blank(), axis.title.x = element_blank(), plot.margin = unit(c(0, 3, 0, 3), "mm")),# p_building_glass + theme(axis.text.x = element_blank(), axis.title.x = element_blank(), plot.margin = unit(c(2, 3, 0, 3), "mm")),# p_rest + theme(plot.margin = unit(c(0, 3, 3, 3), "mm")),# nrow = 3, align = "v", heights = c(3, 0.55, 3.5)), # width = 140, height = 95, unit = "mm", dpi = 500, device = cairo_pdf)
Day 19 Timeseries::Smooth
Show the code
library(tidyverse)library(ggrepel)library(showtext)library(ggtext)pop <-read_delim(file ="day19/pollofpolls.txt") %>%mutate(across(-date, ~ (gsub("\\s*\\(.*\\)", "", .)))) %>%separate(col = date, sep =" '", into =c("month", "year")) %>%mutate(across(-c(month, year), ~as.numeric(gsub(",", ".", .)))) %>%mutate(year =paste0(20, year), year =as.numeric(year)) %>%pivot_longer(cols =-c(month, year), names_to ="party", values_to ="poll_res")pal <-c(H ="#009de0",AP ="#e81502",FrP ="#0c366c",SP ="#b7cc2b",SV ="#cc08c9",V ="#12c4a7",MDG ="#138031",KrF ="#feb937",R ="#7b0a02",Andre ="#888888")pollofpolls_p <- pop %>%ggplot() +geom_smooth(aes(x = year, y = poll_res, color = party), span =0.1, se =FALSE, linewidth =0.4)# Now that we have the plot, we can extract the smoothed endpoints of each line# to which we can annotate with party labels...smooth_ends <-ggplot_build(pollofpolls_p)$data[[1]]party_lookup <- pop %>%group_by(party) %>%summarise(group =cur_group_id())# Create the data for the geom_text_repel()smooth_labeled <- smooth_ends %>%group_by(group) %>%slice_max(order_by = x, n =1) %>%left_join(party_lookup, by ="group")# Election yearselection_yrs <-tibble(xmin =c(2009, 2013, 2017, 2021, 2025),xmax = xmin +1,label ="Election year")pollofpolls_p <-ggplot(pop, aes(x = year, y = poll_res, color = party, size =ifelse(party %in%c("H", "AP", "FrP", "SP"), "b", "a"))) +geom_rect(data = election_yrs,aes(xmin = xmin, xmax = xmax, ymin =0, ymax =38),inherit.aes =FALSE,fill ="#FFFFFF", alpha =0.7 ) +geom_label(data = election_yrs,aes(x = xmin, y =38, label = label),inherit.aes =FALSE,color ="#999999",hjust =0,label.size =0,family ="Montserrat",size =2, alpha =0.7 ) +geom_jitter(shape =16, alpha =0.25, width =0.5, size =0.8) +geom_smooth(method ="loess", span =0.20, se =FALSE, fullrange =TRUE) +scale_size_manual(values =c(0.2, 0.6)) +scale_color_manual(values = pal) +scale_fill_manual(values = pal) +theme_minimal(base_size =8, base_family ="IBM Plex Sans") +theme(legend.position ="none",panel.grid.major.x =element_blank(),panel.grid.minor.x =element_line(color ="#F9F9F9"),panel.grid.minor.y =element_blank(),axis.ticks =element_blank(),axis.title.y =element_blank(),axis.text.y =element_text(margin =margin(r =-15), vjust =-0.3, hjust =0),axis.title.x =element_blank(),plot.margin =unit(c(2, 2, 2, 4), "mm"),plot.title =element_textbox_simple(face ="bold", size =11),plot.subtitle =element_textbox_simple(size =7, color ="#666666", margin =margin(8, 0, 6, 0)),plot.caption =element_textbox_simple(color ="#999999", margin =margin(5, 0, 3, 0)),plot.background =element_rect(fill ="#FAF9F6", color =NA) ) +scale_x_continuous(expand =expansion(mult =c(0.08, 0.08)), breaks =c(2025, 2021, 2017, 2013, 2009)) +scale_y_continuous(labels =c("0%", "10%", "20%", "30%"), breaks =c(0, 10, 20, 30), limits =c(0, 40)) +labs(title ="Long-Term Polling Trends for Norwegian Political Parties (Parliamentary Elections)",subtitle ="Smoothed lines (span = 0.20) summarize monthly polling data. Note that recent shifts in voter support may not be fully captured by the smoother, including a strong uptick in support for <strong style='color: #e81502;'>AP</strong> and a downward trend for <strong style='color: #0c366c;'>FrP</strong>.",caption ="**Source:** PollOfPolls.no | **Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" ) +geom_text_repel(data = smooth_labeled,aes(x = x, y = y, label = party, color = party),direction ="y",force =0.1,nudge_x =1.5,hjust =0,segment.size =0.1,segment.color ="#999999",segment.linetype ="dashed",segment.curvature =0.15,family ="Montserrat", size =2.2 )# showtext_auto()# showtext_opts(dpi = 500)# ggsave("day19/out/pollofpolls.jpg", pollofpolls_p, width = 140, height = 90, unit = "mm", dpi = 500)
Day 25 Uncertainty::Risk
Show the code
library(survival); library(survminer); library(tidyverse); library(ggtext); library(showtext)fit <-survfit(Surv(futime, status) ~ trt, udca1 %>%mutate(futime = futime/365.25))font_add_google("IBM Plex Sans", regular.wt =400)group_labels <-rep(names(fit$strata), fit$strata)km_data <-data.frame(time = fit$time,surv = fit$surv,lower = fit$lower,upper = fit$upper,n.risk = fit$n.risk,n.event = fit$n.event,n.censor = fit$n.censor,group_labels = group_labels)censor_data <- km_data %>%filter(n.censor >0)km <-ggplot(km_data, aes(x = time, y = surv, color = group_labels)) +geom_ribbon(aes(ymin = lower, ymax = upper, fill = group_labels), alpha =0.2, linetype =0, show.legend =FALSE)+geom_step(linewidth =1.5) +geom_point(data = censor_data, aes(x = time, y = surv), shape =16, color ="white", size =0.8, alpha =0.7) +labs(x ="Time", y ="Survival probability") +theme_minimal(base_family ="IBM Plex Sans", base_size =8)+scale_y_continuous(limits =c(0,1), expand =expansion(mult =c(0, 0.05)), breaks =seq(0.25, 1, 0.25), labels =c("25%", "50%", "75%", "100%"))+scale_x_continuous(expand =c(0,0), breaks =seq(0, 5, 1), labels =c("0", "1 yr", "2 yrs", "3 yrs", "4 yrs", "5 yrs"), limits =c(0, 5))+scale_color_manual(labels =c("Placebo", "UDCA"), values =c("#95bbbe", "#f27b5f"))+scale_fill_manual(labels =c("Placebo", "UDCA"), values =c("#95bbbe", "#f27b5f"))+theme(plot.subtitle =element_textbox_simple(margin =margin(t =5, b =10), color ="#444444", size =7),plot.title =element_textbox_simple(margin =margin(t =5, b =5), color ="#444444", size =11, face ="bold"),plot.title.position ="plot",legend.position ="none",plot.margin =unit(c(4,4,4,4), "mm"),axis.line.x =element_line(size =0.25, color ="#444444"),axis.ticks.x =element_line(size =0.25, color ="#444444"),axis.ticks.length =unit(2, "mm"),axis.title =element_blank(),plot.background =element_rect(fill ="#fdfbf7", color =NA),panel.grid.minor =element_blank(),panel.grid.major.x =element_blank(),axis.ticks.y =element_line(color ="#e0e0e0"),panel.grid.major.y =element_line(color ="#e0e0e0"),plot.caption =element_textbox_simple(color ="#777777", size =6, margin =margin(t =12, b =0)) )+labs(title ="UDCA and the *risk* of treatment failure in PBC",subtitle ="Kaplan Meier plot showing the **probability of treatment failure** for treatment groups from a trial testing the efficacy of <strong style='color: #f27b5f;'>ursodeoxycholic acid (UDCA)</strong> *vs* <strong style='color: #95bbbe;'>placebo</strong> in the cholestatic liver disease primary biliary cholangitis (PBC). For more detail see Lindor et al., Gastroenterology **1994**;106:1284-1290.",caption ="**Source:** survival::udca1 | **Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/>" ) +geom_label(family ="IBM Plex Sans", color ="#444444", size =2.2, x =2.6, y =0.25, lineheight =0.9, hjust =1, label.size =NA, fill ="#fdfbf7",label ="Each white dot indicates censoring, i.e.\nthat a patient was lost to follow-up without\nprior treatment failure.") +geom_curve(aes(x =2.65, xend =3.29, y =0.25, yend =0.42), arrow =arrow(length =unit(1.5, "mm"), type ="closed"), size =0.2, color ="#888888", curvature =0.4)+geom_label(family ="IBM Plex Sans", color ="#444444", size =2.2, x =2.8, y =0.98, lineheight =0.9, hjust =0, label.size =NA, fill ="#fdfbf7", label ="Each step indicates that an event (here:\ntreatment failure) occurred")+geom_curve(aes(x =2.75, xend =2.12, y =0.98, yend =0.85), arrow =arrow(length =unit(1.5, "mm"), type ="closed"), size =0.2, color ="#888888", curvature =0.4) +geom_label(family ="IBM Plex Sans", color ="#444444", size =2.2, x =1.5, y =0.6, lineheight =0.9, hjust =1, label.size =NA, fill ="#fdfbf7",label ="The shaded areas indicate\n95% confidence intervals")+geom_curve(aes(x =1.55, xend =1.85, y =0.6, yend =0.7), arrow =arrow(length =unit(1.5, "mm"), type ="closed"), size =0.2, color ="#888888", curvature =0.4)# Legendshowtext_auto()showtext_opts(dpi =500)ggsave("day25/out/km.jpg", km, width =120, height =100, unit ="mm", dpi =500)
Day 27 Uncertainty::Noise
Show the code
library(tidyverse); library(ggrepel); library(ggpubr); library(ggtext); library(showtext)# 2021 relections first# We first check how PollOfPolls calculate their averagese_date_2021 <-as.Date("2021-09-15")e_res_2021 <-c(R =4.7,SV =7.6,AP =26.3,SP =13.5,MDG =3.9,KrF =3.8,V =4.6,H =20.4,FrP =11.6)e_date_2017 <-as.Date("2017-09-11")e_res_2017 <-c(R =2.4,SV =6.0,AP =27.4,SP =10.3,MDG =3.2,KrF =4.2,V =4.4,H =25.0,FrP =15.2)e_date_2013 <-as.Date("2013-09-11")e_res_2013 <-c(R =1.1,SV =4.1,AP =30.8,SP =5.5,MDG =2.8,KrF =5.6,V =5.2,H =26.8,FrP =16.3)e_res_df <-enframe(e_res_2021, name ="party", value ="election_res") %>%mutate(year =2021) %>%bind_rows(enframe(e_res_2017, name ="party", value ="election_res") %>%mutate(year =2017)) %>%bind_rows(enframe(e_res_2013, name ="party", value ="election_res") %>%mutate(year =2013))polls <-read_delim(file ="day27/2021.txt") %>%mutate(year =2021) %>%bind_rows(read_delim(file ="day27/2017.txt") %>%mutate(year =2017)) %>%bind_rows(read_delim(file ="day27/2013.txt") %>%mutate(year =2013)) %>%mutate(across(-c(date, pollster, year), ~ (gsub("\\s*\\(.*\\)", "", .)))) %>%mutate(across(-c(pollster, date, year), ~as.numeric(gsub(",", ".", .)))) %>%mutate(date =dmy(date)) %>%# Pivot longerpivot_longer(cols =-c(pollster, date, year), names_to ="party", values_to ="vote_share") %>%filter(party !="Other")# We can check how PollOfPolls calculate their averages (benchmarking against their 2021 data)# polls %>%# filter(year == 2021) %>%# group_by(party) %>%# summarise(average = mean(vote_share))# Which seems to return the same numbers as on their website. # Now remove any poll taken _after_ the elections or before 2 weeks prior to the electionpolls_filtered <- polls %>%filter(case_when( year ==2021~ date < e_date_2021 & date >= e_date_2021 -14, year ==2017~ date < e_date_2017 & date >= e_date_2017 -14, year ==2013~ date < e_date_2013 & date >= e_date_2013 -14,TRUE~FALSE# Exclude other polls ) )# We now calculate summary statisticspolls_sum_stat <-polls_filtered %>%group_by(year, party) %>%summarise(mean_poll_vote =mean(vote_share),sd_poll_vote =sd(vote_share) ) %>%mutate(lower = mean_poll_vote - sd_poll_vote,upper = mean_poll_vote + sd_poll_vote) %>%# Add the election results for the two yearsleft_join(e_res_df)# Now we plot the calibration plots, for three yearsyears <-c(2013, 2017, 2021)# Function to generate plot per yearplot_per_year <-function(y) { polls_sum_stat %>%filter(year == y) %>%ggplot(aes(x = mean_poll_vote, y = election_res, fill = party, color = party, label = party)) +geom_abline(size =0.20, color ="#999999") +geom_errorbar(aes(xmin = lower, xmax = upper), width =0.5, linewidth =0.3) +geom_point(size =2, alpha =1, color ="white", shape =21, stroke =0.2) +geom_text_repel(family ="IBM Plex Sans", size =2, segment.color ="#444444", segment.size =0.15) +labs(title =paste("Election", y),x ="Polling average",y ="Election result" ) +theme_minimal(base_family ="IBM Plex Sans", base_size =7) +theme(panel.spacing =unit(4, "mm"),axis.ticks.length =unit(1.5, "mm"),panel.grid.minor =element_blank(),legend.position ="none",plot.background =element_rect(color =NA, fill ="#faf8f5"),plot.margin =unit(c(6,6,1,6), "mm"),axis.title =element_text(color ="#444444", margin =margin(r =5)),axis.line =element_line(color ="#444444", size =0.2),axis.ticks =element_line(color ="#444444", size =0.2),plot.title =element_text(color ="#444444", size =8) ) +scale_fill_manual(values = pal) +scale_color_manual(values = pal) +scale_x_continuous(limits =c(0, 35), expand =c(0, 0), breaks =seq(0, 30, 10), labels =c("0", "10", "20", "30%")) +scale_y_continuous(limits =c(0, 35), expand =c(0, 0), breaks =seq(0, 30, 10), labels =c("0", "10", "20", "30%")) +coord_cartesian(clip ="off")}# Apply the function to each yearplots <-lapply(years, plot_per_year)# Create a title and subtitle plottitle_p <-ggplot()+theme_void()+theme(plot.background =element_rect(fill ="#faf8f5", color =NA),plot.subtitle =element_textbox_simple(family ="IBM Plex Sans", size =6, color ="#444444"),plot.title =element_textbox_simple(margin =margin(t =12, b =16), family ="IBM Plex Sans", size =9, color ="#444444"),plot.margin =unit(c(4, 6, 0, 6), "mm"),plot.caption =element_textbox_simple(size =6, color ="#999999", family ="IBM Plex Sans") ) +labs(title ="**Predicted *vs* actual** election results",subtitle ="Every four years, parliamentary elections are held in Norway. This plot visualizes how well the predictions (polls) from the final two weeks leading up to the elections in 2013, 2017 and 2021 corresponded with the actual vote shares from election day. Points falling along the diagonal line indicate concordance between predicted and actual vote shares.<br><br>The predictions were calculated as unweighted averages of polls. The horizontal error bars indicate the standard deviation. Note that polling and reporting of poll numbers reflect what happened a while back...",caption ="**Source:** PollOfPolls.no<br>**Data visualization:** Peder Braadland <img src='../../logo_red_png.png' width='6'/><br><br><br><br>" )plots[[1]] <-plots[[1]] +geom_segment(aes(x =9, y =9, xend =9, yend =22), arrow =arrow(length =unit(1, "mm"), type ="closed"), size =0.2, color ="#444444")+geom_label(aes(x =9, y =25), label ="Overperformance\nrelative to polls", family ="IBM Plex Sans", color ="#444444", fill ="white", size =1.8, label.size =NA)+geom_segment(aes(x =23, y =23, xend =23, yend =9), arrow =arrow(length =unit(1, "mm"), type ="closed"), size =0.2, color ="#444444")+geom_label(aes(x =23, y =6), label ="Underperformance\nrelative to polls", family ="IBM Plex Sans", color ="#444444", fill ="white", size =1.8, label.size =NA)composite <-ggarrange(title_p, plots[[1]], plots[[2]], plots[[3]], nrow =2, ncol =2)showtext_auto()showtext_opts(dpi =500)ggsave("day27/out/calib_poll.jpg", composite, width =130, height =120, unit ="mm", dpi =500)
Extras: Remake of FT US policy uncertainty data
Show the code
# Remake of @jburnmurdoch.ft.com's vizlibrary(tidyverse); library(showtext)df <-read_delim("US_Policy_Uncertainty_Data.txt")p <-df %>%mutate(Year =as.integer(Year),date =ymd(paste(Year, Month, "01", sep ="-")) ) %>%filter(!is.na(Year)) %>%filter(Year >2004) %>%bind_rows(tibble(Year =2025, Month =4, Three_Component_Index =NA, News_Based_Policy_Uncert_Index =1000, date =as.Date("2025-04-01"))) %>%ggplot(aes(x = date, y = News_Based_Policy_Uncert_Index))+geom_hline(yintercept =seq(200, 600, 200), color ="#e6dace", size =0.15)+geom_line(color ="#d14600", linewidth =0.6) +geom_point(aes(x =max(date), y =1000), color ="#d14600")+theme_minimal(base_family ="Roboto", base_size =9)+theme(panel.grid.major =element_blank(),panel.grid.minor =element_blank(),axis.line.x =element_line(color="#5e5250", size =0.4),axis.ticks.x =element_line(color="#5e5250", size =0.4),axis.text =element_text(color ="#5e5250"),axis.title =element_blank(),plot.title =element_text(vjust =-21, color ="#332f2c", size =13),plot.subtitle =element_text(vjust =-40, color ="#5e5250", size =7),plot.title.position ="plot",plot.background =element_rect(fill ="#fff1e6", color =NA),plot.caption =element_text(size =5, color ="#5e5250", hjust =0),plot.caption.position ="plot",plot.margin =unit(c(-7, 1, 1, 1), "mm") ) +scale_y_continuous(breaks =seq(0, 600, 200))+labs(title ="Uncertainty has exploded under Trump",subtitle ="US Economic Policy Uncertainty Index",caption ="Source: policyuncertainty.com/\nBased on @jburnmurdoch.ft.com's graphic\nPeder Braadland")+scale_x_date(expand =c(0.015, 0.015))+annotate(geom ="text", label ="Trump", x =as.Date("2024-10-01"), y =1000, vjust =0.5, size =2, color ="#5e5250", hjust =1, family ="Roboto")+annotate(geom ="text", label ="Covid-19\npandemic", x =as.Date("2019-11-01"), y =460, vjust =0.5, lineheight =0.85, size =2, color ="#5e5250", hjust =1, family ="Roboto")showtext_auto()showtext_opts(dpi =500)ggsave("jburnmurdoch.jpg", p, width =90, height =65, unit ="mm", dpi =500)
